Description

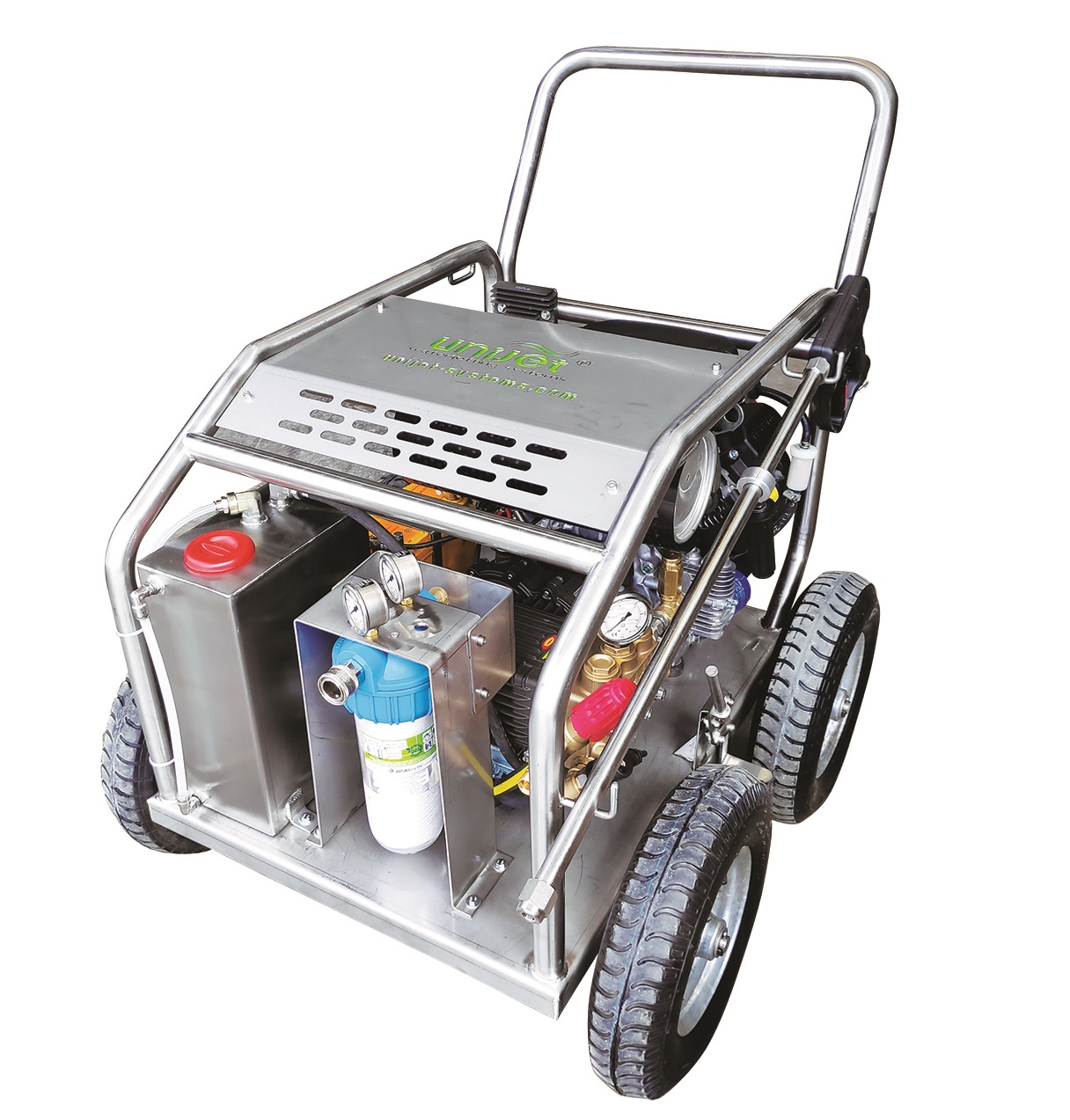

Technical Characteristics of The Unijet Waterjetting System 500G15 JET
Engine design:
- Four-stroke air cooled OHV petrol Honda engine
- Engine 90° V-twin design
- Electronic start-stop
- Electronic hour meter
- Horizontal shaft
- Cast iron sleeve
Pump design:
- Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
- Pump max. water temperature at 45˚C
- Thermal valve
- Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
- Safety valve (set 10% above operating pressure) for pump protection against overpressure
- Pump oil level indicator
High pressure unit design:
- Stainless steel 304L frame
- Shock absorbing anti-vibration mounts
- Fuel tank manufactured from stainless steel 304L 3mm with adequate capacity to keep the engine supported with level switch
- Gearbox with reduction ratio 1:2,2
- High pressure gauge for visual pressure monitoring with pressure snubber, absorbing vibration shocks and providing more accurate pressure readings
- 10-micron inlet water filter for long service life of the pump
- Inlet pressure switch against poor water flow
- Certification of 45’ machine test run on max. operating pressure
Technical Specifications
Model 500G15 JET
Max. operating pressure 500 bar
Max. water flow rate 15 lpm
Engine output power HONDA 24 HP/18 kW
Plunger material Solid ceramic
Pump head material Hardened brass
Engine speed 3600 rpm
Crankshaft speed 1450 rpm
Weight 186 kg
Dimensions 110x95x93 cm
The unit comes with the following equipment (standard configuration):
- High pressure gun
- 70cm high pressure lance
- Flat jet nozzle
- 10m high pressure hose 600 bar
- Manual book
Optional machine equipment:
- High pressure hose 3/8’’ 600 bar with fittings & connecting nipple
- Sandblasting kit 500 bar consisting of:
Sandblast head with flat jet
High-strength carbide nozzle
Stainless steel adjustable probe
Spiral hose 5m ø19 - Rotating nozzle 600 bar
- Personal protective equipment
