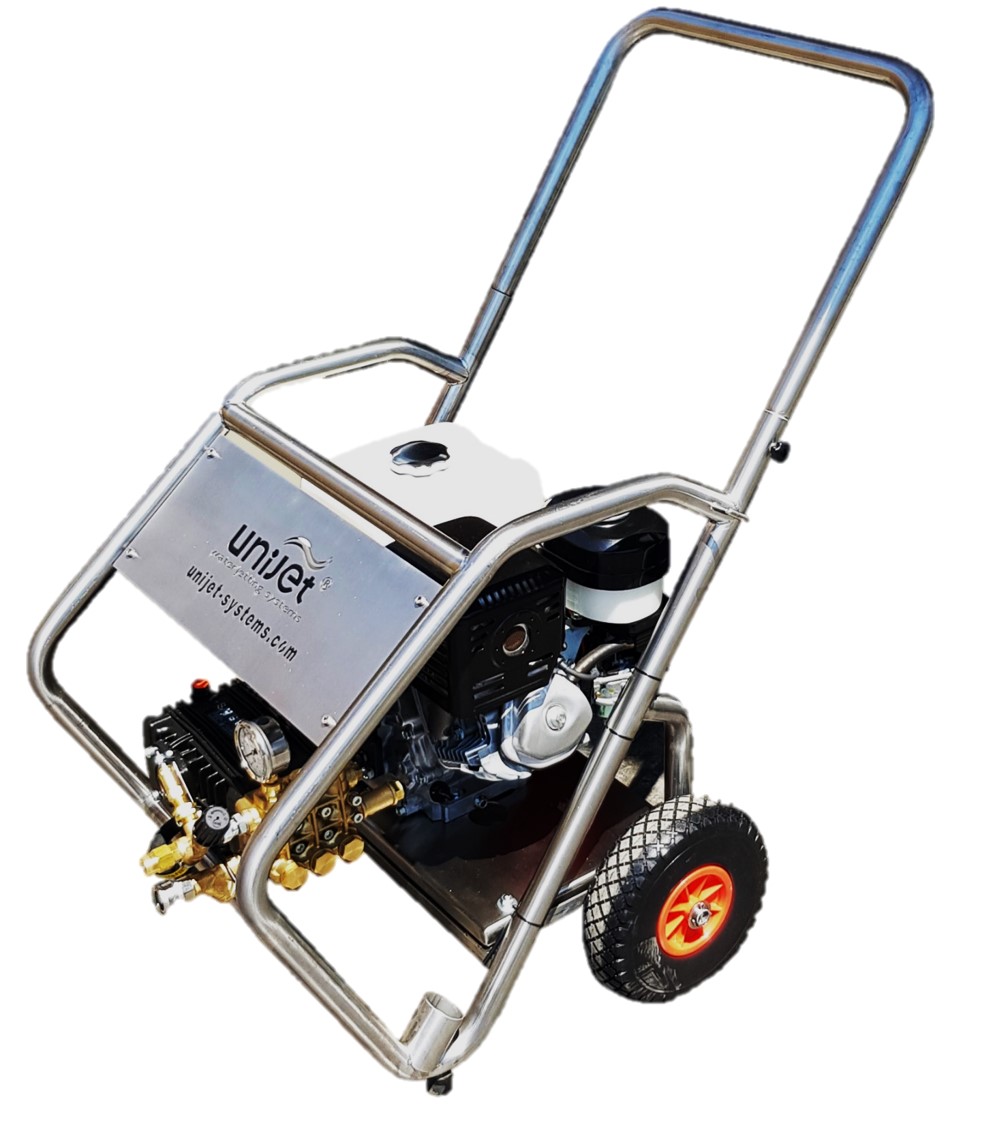

Unijet Waterjetting Unit 300G15 ECO

Technical Characteristics of The Unijet Waterjetting System 300G15 ECOJET

Engine design:

• Four-stroke air cooled OHV petrol Honda engine
• Engine 90° V-twin design
• Horizontal shaft
• Cast iron sleeve

Pump design:

• Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs
• Pump max. water temperature at 45˚C
• Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure)
• Thermal valve
• Pump oil level indicator

High pressure unit design:

• Stainless steel 304L frame
• Shock absorbing anti-vibration mounts
• High pressure gauge for visual pressure monitoring with pressure snubber, absorbing vibration shocks and providing more accurate pressure readings
• Certification of 45’ machine test run on max. operating pressure

Technical Specifications
Model 300G15 ECOJET
Max. operating pressure 300 bar
Max. water flow rate 15 lpm
Engine output power Honda 13 HP/10 kW
Plunger material Ceramic
Pump head material Hardened brass
Engine speed 3600 rpm
Crankshaft speed 3600 rpm
Weight 79 kg
Dimensions 92×75x72 cm

The unit comes with the following equipment (standard configuration):

• High pressure gun
• 70cm high pressure lance
• Flat jet nozzle
• 10m high pressure hose 400 bar
• Manual book

Optional machine equipment:

• High pressure hose 3/8’’ 400 bar with fittings & connecting nipple
• Sandblasting kit 500 bar consisting of:
• Sandblast head with flat jet
• High-strength carbide nozzle
• Stainless steel adjustable probe
• Spiral hose 5m ø19
• Rotating nozzle 350 bar
• Personal protective equipment
• Sandblasting kit 250 bar consisting of:
  Sandblast head with WIDIA insert
  Stainless steel adjustable probe
  Spiral hose 5m ø13
